320x160mm Fixed P5 Outdoor LED Display High Refresh Rate 3840Hz Waterproof
| Place of Origin | Shen zhen China |
|---|---|
| Brand Name | AVOE LED |
| Certification | CE RoHS |
| Model Number | AV-P5OFRGB |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Flight case, Plywood case. |
| Delivery Time | 10 working days after receiving the payment |
| Payment Terms | T/T, Western Union, MoneyGram, L/C |
| Supply Ability | 10K sqm per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Outdoor Fixed Full Color LED Display | Resolution/mm | 5mm |
|---|---|---|---|
| Pixel Density/pixels/m² | 40000dot/m² | Brightness( Nits /m² ) | 7000 |
| Color | Full-color,Full Color,RGB,1R1G1B | Module Size | 320*160mm |
| Average Power | 270W/sqm | Max. Power | 880W/sqm |
| Scan Mode | 1/8S | Cabinet Size | 960*960*90mm |
| Highlight | Fixed P5 Outdoor LED Display,Waterproof P5 Outdoor LED Display,320x160mm P5 Outdoor Led Module |
||
Product Description
P5 320x160mm Outdoor Fixed LED Display, High Refresh Rate 3840Hz, Waterproof, Heat Dissipation
AVOE LED Display P5 full color outdoor led display high refresh rate 3840Hz AVOE LED module 320x160mm
1. Fast cooling: excellent heat dissipation performance to protect the modular circuit
2. Anti-interference: Special anti electromagnetic interference function
3. High strength: support the weight 3000kg through tension test, more strength than aluminum
4. Easy installation: installed by quick lock within 20 seconds only
5. High precision: seamless splicing through CNC machining
6. Good universality: can be processed according to module drawing, used for outdoor and indoor
7. High cost-effective: large-scale production, complete production and supply chain.
Features
1. Waterproof, and great heat dissipation.
2. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
3. Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.
4. To pictures and character, have clear, exquisite and real display effect.
5. High intensity and can be adjusted, so can meet the request of the customers according the application environment.
6. Clear Vivid Image Quality: even in direct , full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment
Application:
Widely used in stage, concert, live on TV, wedding, conference, ceremony gala, exhibition presentation, commercial advertising and other outdoor rental events.
Product Specification:
| Specification of AVOE LED Display P5 Outdoor Fixed LED Display | |||||
| Module | |||||
| Dimention (w*h) | 320mmx160mm | Resolution (w x h) | 64x32 | ||
| Pixel pitch | 5mm | Pixel Density | 40000 dots/㎡ | ||
| Pixel Configration | RGB 3-in-1 | LEDs Type | SMD1921 Nationastar Brand | ||

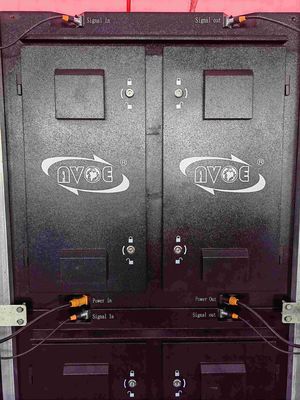

| Cabinet | |||||
| Dimensions(w* h)(mm) | 960*960mm | Module Quantity(PCS) | 18 | ||
| Physical Resolution (w x h) | 192*192 | Physical Pixels (total) | 36864 | ||
| Weight/Cabinet (kg) | 26kg | Material | Magnesium alloy | ||
| Average Power/㎡(watts) | 300W | Max Power/㎡(watts) | 950W | ||
| Parameter | Value | ||||
| Brightness | ≥ 5500 cd/㎡ | ||||
| Viewing Angle | Horizontal 140(+70/-70) deg. Vertical 140(+70/-70)deg. | ||||
| Best Viewing Distance | 5-200meters | ||||
| Brightness Control | 256 level | ||||
| Gray scale | 14bits | ||||
| Refresh frequency | ≥ 1920Hz | ||||
| Driving mode | 1/8 scan constant current driving | ||||
| Input power frequency | 50/60 Hertz | ||||
| Input Voltage | AC/220 ～ 240 Volt | ||||
| Blind spot rate | ＜1/10000 | ||||
| Lifetime at 50% brightness | 100000 hours | ||||
| Ingress Protection | IP65/IP54 | ||||
| Operating temperature | ﹣20 ～﹢50 ℃ | ||||
| Operating humidity | 10％ ～ 90％ | ||||
| Control distance | CAT6 cable:＜100 m; Single mode fiber:＜10 km | ||||
| Signal input format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
| Operating system | Windows (2007/XP/Vista/7/8/10) | ||||
AVOE LED Display Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
Installation Procedure
Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2. After sale service
Quick response
Prompt question resolving
Service tracing
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
